SMA Female Omni Directional Antenna Working Frequency 0-6Ghz Brass Body Material

Product Categories
SHENZHEN CSCE ELECTRONIC CO.,LTD
Contact Now

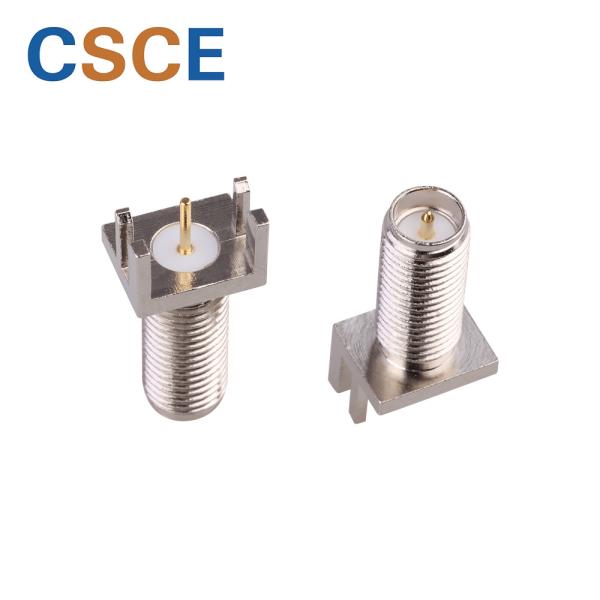

SMA Female Omni Directional Antenna Working Frequency 0-6Ghz Brass Body Material

  • 1
  • 2

Brand Name : CSCE

Model Number : SC1-SMA0000038

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : Shenzhen,China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Connector : SMA FEMALE

Vswr : ≤1.5

Impedance : 50ohm

Frequency : 0-6Ghz

Body material : BRASS

Insulators Material : Teflon

Contact Now

SC1-SMA0000038 SMA Female 50 ohm Working Frequency: DC - 6 GHz

Quick Details:

Specification: Antennas Cross Part NO: SC1-SMA0000038
Mounting: solder Samples: Available 20-3 Pcs

Product Details:

Impedance 50 ohm
Outer Contact 2 Milliohms max
Center Contact 6 Milliohms max
Insulator Resistance 5000 Megohms min
Frequency Range

0-6 GHz

VSWR

1.5max
Dielectric Withstanding Voltage

500 VRMS min
Working Voltage

335 VRMS max

Product Material:

Clamp Gaskets Silicone rubber None
Insulators Teflon None
Crimp Ferrules Annealed Brass Gold 3 micro-inches
Female Beryllium copper per QQ-C-530 Gold 30 micro-inches
Body,Metal Parts Brass per QQ -B-626 Gold 3 micro-inches
Male Brass per QQ-B-626 Gold 30 micro-inches

Why choose us

  1. Have a strong research and development ability for a new product
  2. Equipment and manufacturing ability for would
  3. Competitive price , and in time delivery well-selling in both domestic and foreign markets
  4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  5. Specializes in the development , design , production and sale of communication network connectors .

Main Customers

Hisense Skyworth FOXCONN JEZETEK TCL NEC
TENDA HUMAX PANASONIC HUAWEI CIG TwoWing

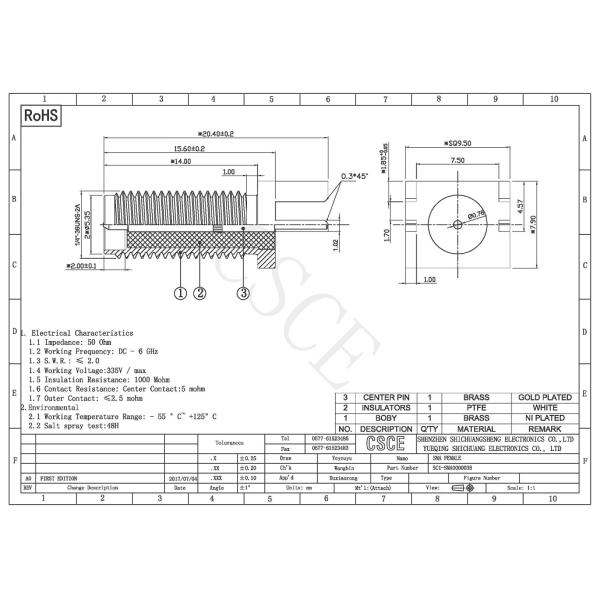

Product Drawing:

SMA Female Omni Directional Antenna Working Frequency 0-6Ghz Brass Body Material
